Product Name: | xcmg Truck Mounted Crane | Model: | SQ12SK3Q |
---|---|---|---|
Drive type: | LHD 6X4 | Emission Standard: | Euro 2 |
Engine: | WD615.69, 336HP | Lifting capacity: | 12Tons |
Crane brand: | XCMG | ||
แสงสูง: | truck mounted hydraulic crane,truck mounted telescopic boom crane |

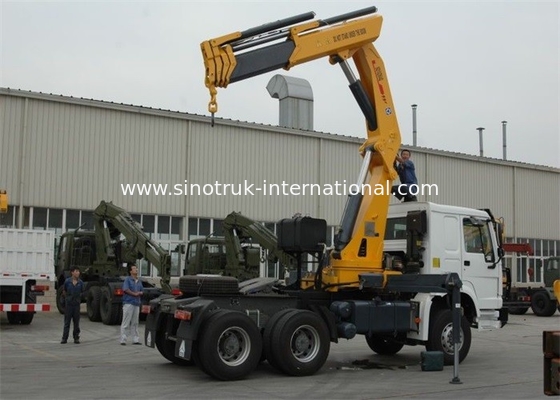

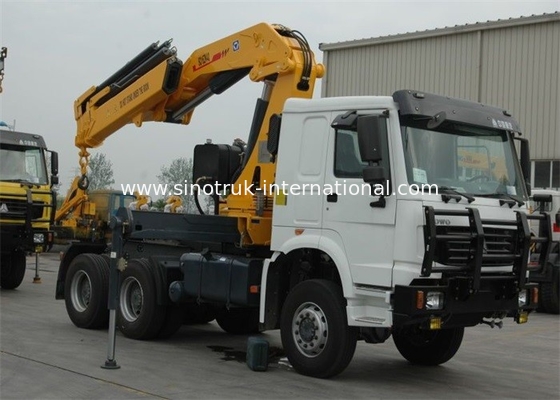

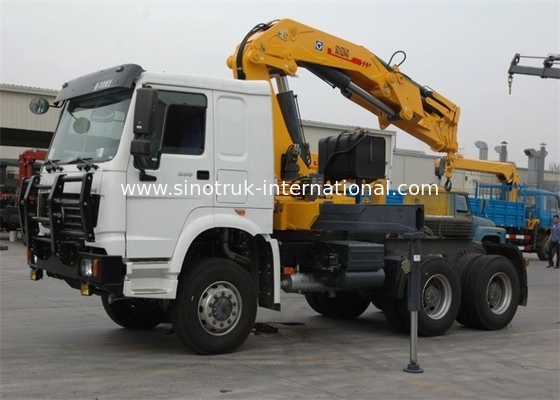

SINOTRUK Tractor Truck Mounted Cranes 6X4 LHD 336HP Equipment XCMG12 Tons crane
Description:
SINOTRUK Tractor Truck Mounted Cranes 6X4 LHD 336HP Equipment XCMG12 Tons crane
Truck Mounted Crane can lift and transport all kinds of goods, widespread use in transportation, civil construction (including constructional engineering, road and bridge engineering, municipal constructional engineering, mechanical engineering etc.), landscape sanitation, electricity and telecommunication industry, field operation, pipeline transportation, stone industry, dock cargo handing and long distance goods transfer. After installed additional device, it can be used for traffic accidents
and high altitude rescue.
Which can choose all kinds of Brand, Such as HOWO, Golden Prince, HOWO A7, Hohan, Engine
power have 266HP, 290HP, 336HP, 371HP and so on. Emission stand from Euro 2 to Euro5.
Specification:
SINOTRUK Tractor Truck Mounted Cranes 6X4 LHD 336HP Equipment XCMG12 Tons crane | |
Chassis Model |
ZZ4257N3247W |
Drive Type |
6×4 |
Engine |
WD615.69, 336HP |
Cabin |
HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission |
HW15710(10 forwards & 1 reverses) |
Front Axle |
HF9(1X9 Tons) |
Driving Axle |
HC16(2X16Tons) |
Clutch |
hydraulically operating with air assistance |
Rim/ Tire |
11.00R20 |
Wheel base |
4400+1350(mm) |
Lifting Capacity |
12 Tons(XCMG, HIAB, or other famouse brand) |
Dimension of cargo body |
6200*2300*600mm, Bottom:3mm Side:1.5mm |
Lifting Height |
14.5m |
Overall dimension |
9520×2500×3475mm |
The curb weight |
10180(Kg) |
Gross weight |
25000 kg |
Max. speed |
95km/h |
Color |
White, red, green, golden and so on. |
Applications:
Truck Mounted crane can widespread use in transportation, civil construction (including constructional engineering, road and bridge engineering, municipal constructional engineering, mechanical
engineering etc.), landscape sanitation, electricity and telecommunication industry.
Competitive Advantage:
1) Adopted imported hydraulic pump, valve and other hydraulic components, lock micro products, to ensure safety and durability
2) Product is made of high strength steel plate welding, increase the structural strength, reduce the weight of the engine, greatly improving the lifting performance
3) Hexagon bending forming jib, reduced the horizontal shaking, make the operation more safety; Rotating device is made of high quality rotary support and reducer, make the action more supple and smooth.
4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
5) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,
150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees
flowers and plants
6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high quality and
more reliable
9) competitive price, cost-effective
10) quick and efficient spare parts supply bring you more convenient
11) fast delivery time, we can arrange production according to your needs exactly and quickly
12) professional import and export dealing procedure, make customs clearance more high efficiency
