Place of Origin: | China |
ชื่อแบรนด์: | SINOTRUK HOWO |
ได้รับการรับรอง: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ4257N3241W |
Minimum Order Quantity: | 1 Unit |
---|---|
ราคา: | USD36500-USD37000/UNIT)negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 20 working days after received your advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 4,000units per month |
Product Name: | Tractor Truck | Model: | ZZ4257N3241W |
---|---|---|---|
Drive type: | LHD 6X4 | Emission Standard: | Euro 2 |
Engine: | WD615.69, 336HP | Fifth Wheel: | #50, #90 |
Traction capacity: | 60-70tons | Max. speed: | 102km/h |
แสงสูง: | tractor trailer truck,howo tractor truck |

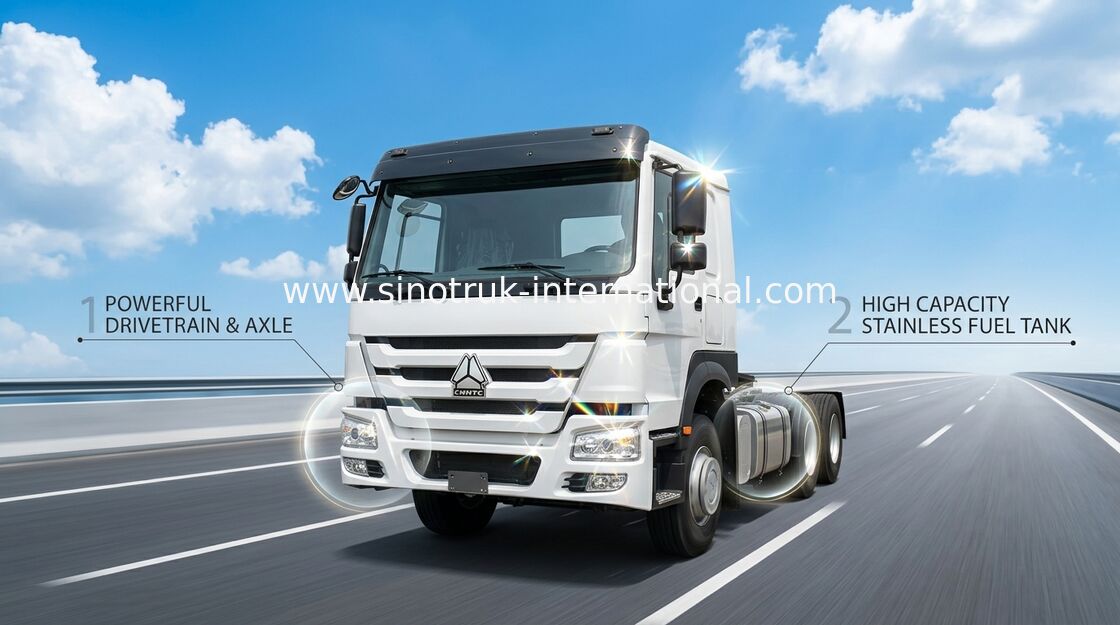

HOWO Tractor Truck LHD 6X4 336HP 10 Wheels HW76 cab Single berth ZZ4257N3241W
Description:
HOWO Tractor Truck LHD 6X4 336HP 10 Wheels HW76 cab Single berth ZZ4257N3241W
This model is the proven product of SINITRUK, which features reliable structure, great loading capacity, excellent power from 266-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.
Highway transport is divided into two version, to match the different condition of transportation needs.
The first version of the highway transport is equipped with aluminum shell transmission MCY13 (Q) single reduction drive axle and other lightweight configuration, mainly used for standard load level (It means that the total weight of tractor train within 55 tons, the total weight of bike within 41 tons);
When the first version of the tractor adopts the plate spring suspension, disc brake MCY13 (Q) single stage drive axle can be opted.
The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle which can loaded16 ton, single-stage reduction drive axle,
which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.
Specification:
HOWO Tractor Truck LHD 6X4 336HP 10 Wheels HW76 cab Single berth ZZ4257N3241W |
||||
Model | ZZ4257N3241W | |||
Drive Type | 6×4 | |||
Engine |
|
|||
Cabin | HW76(with single sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | ZF8098 hydraulic steering with power assistance. | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire |
12R22.5 tubeless tyre 11.00R20,12.00R20,12.00R24 Radial tire |
|||
Wheel base | 3200+1350(mm) | |||
Overall dimension |
6800×2496×2958(mm) |
|||
Fifth Wheel |
#50, #90 |
|||
The curb weight | 9180(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 102km/h | |||
Color | White, red, green, golden and so on. |
Applications:
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and
Mining area .
Competitive Advantage:
1)excellent appearance of cabin, safety, reliable
2)low fuel consumption
3)strong enough engine
4)with all kinds of truck model, which can fulfill your requirement
5)the key parts adopt the world's top technology products
6)based on strong technical support and top level technology make the trucks with high quality and more reliable
7)it has higher safety and running efficiency.
8)competitive price, cost-effective
9)quick and efficient spare parts supply bring you more convenient
10)professional import and export dealing procedure, make customs clearance more high efficiency
