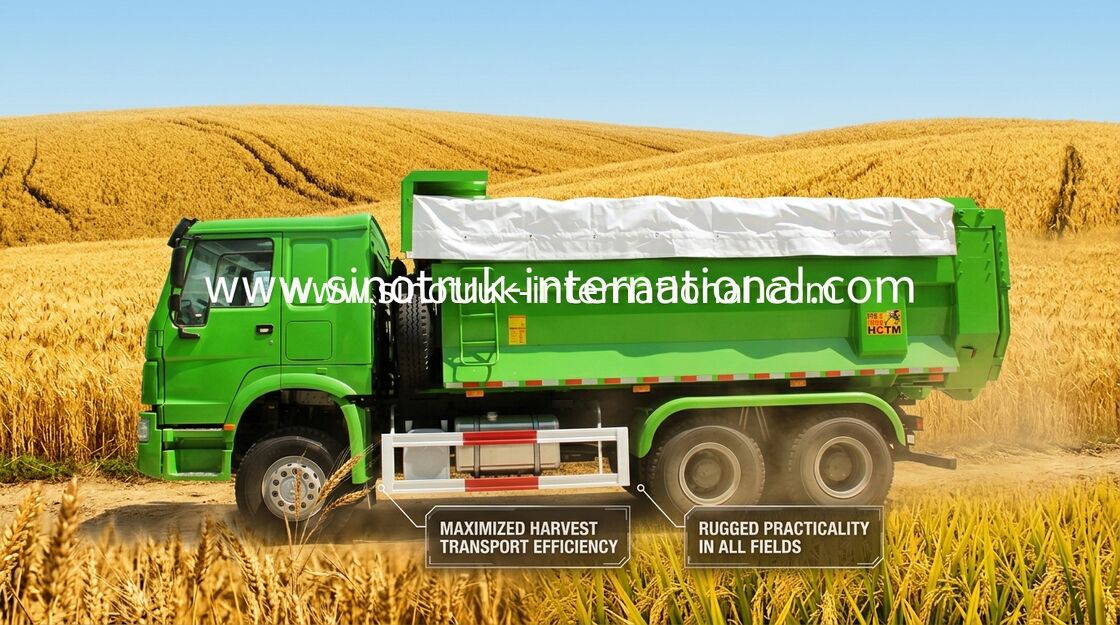

Municipal Heavy Duty Tipper Dump Truck SINOTRUK HOWO LHD 336HP 10 Wheels

Municipal Heavy Duty Tipper Dump Truck SINOTRUK HOWO LHD 336HP 10 Wheels

  • Municipal Heavy Duty Tipper Dump Truck SINOTRUK HOWO LHD 336HP 10 Wheels
  • Municipal Heavy Duty Tipper Dump Truck SINOTRUK HOWO LHD 336HP 10 Wheels
  • Municipal Heavy Duty Tipper Dump Truck SINOTRUK HOWO LHD 336HP 10 Wheels
  • Municipal Heavy Duty Tipper Dump Truck SINOTRUK HOWO LHD 336HP 10 Wheels
Municipal Heavy Duty Tipper Dump Truck SINOTRUK HOWO LHD 336HP 10 Wheels
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: SINOTRUK HOWO
ได้รับการรับรอง: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257N3847A
การชำระเงิน:
Minimum Order Quantity: 1 Unit
ราคา: USD40000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
ติดต่อ
รายละเอียดสินค้า
Product Name: Tipper Dump Truck Model: ZZ3257N3847A
Drive type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.69, 336HP Cargo body: 5800*2300*1500mm
Loading capacity: 30-40tons Cabin: HW76 ,with single berth
แสงสูง:

heavy dump truck

,

sinotruk howo dump truck

Municipal Heavy Duty Tipper Dump Truck SINOTRUK HOWO LHD 336HP 10 wheels



Description:

Municipal Heavy Duty Tipper Dump Truck SINOTRUK HOWO LHD 336HP 10 wheels

Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on. Power range: 266HP - 420HP.

It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works



It have the most production quantity, and also is the most famouse brand

to abroad market. It adopts famouse brand VOLVO truck technology.

New HOWO dump truck, High Quality , More Lighter,

Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system



High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.



SINOTRUK Heavy duty Muck Tipper Dump truck which suitable for public works, for carrying Muck and all kinds of construction material.Especially for public works.





Specification:



Municipal Heavy Duty Tipper Dump Truck SINOTRUK HOWO LHD 336HP 10 wheels
Model ZZ3257N3847A
Drive Type 6×4
Engine

WD615.69 , 336HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating

with air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body

5800×2300×1500(mm),Bottom:8mm, Side:6mm

The curb weight 12200(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.




Applications:



It used for Mining industry, Construction business, docks and so on. Especially for public works.



Competitive Advantage:



1) all kinds of cargo body structure can be designed and produced according to your request,

make it have light curb weight , high rigidity , high loading capacity

2) The optimized hydraulic control system helps to avoid wrong operation, it has higher

safety and running efficiency.

3) quick and efficient spare parts supply bring you more convenient

4) you can choose cargo body with Front lifting type or Middle lifting type which you prefered

5) The hydraulic sytem using HYVA brand or Domestic famouse brand

6) using the high strength steel, make it has a long service life

7) fast delivery time, we can arange production according to your needs exactly and quickly

8) competive price, cost-effective

9) strong enough engine

10) low fuel consumption

11) with all kinds of truck model, which can fulfil your requirements

12) excellant apperance of cabin, safety, reliable

13) professional import and export dealing precedure, make customs clearance more high efficiency





Municipal Heavy Duty Tipper Dump Truck SINOTRUK HOWO LHD 336HP 10 Wheels 0Municipal Heavy Duty Tipper Dump Truck SINOTRUK HOWO LHD 336HP 10 Wheels 1
