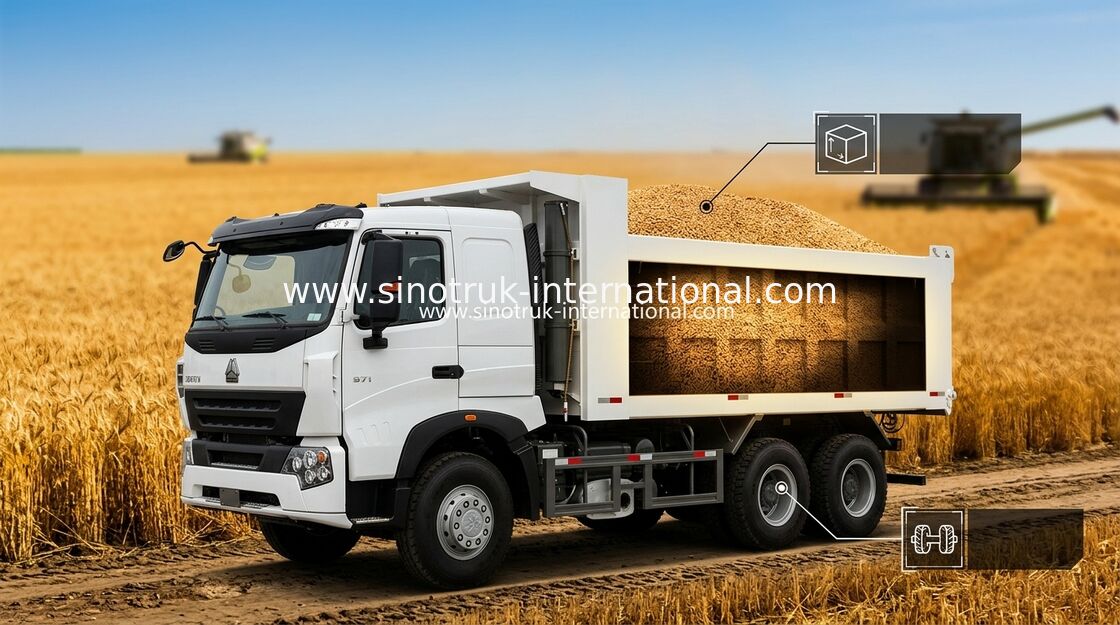

SINOTRUK HOWO Tipper Commercial Dump Truck A7 30 - 40 Tons For Construction

SINOTRUK HOWO Tipper Commercial Dump Truck A7 30 - 40 Tons For Construction

  • SINOTRUK HOWO Tipper Commercial Dump Truck A7 30 - 40 Tons For Construction
  • SINOTRUK HOWO Tipper Commercial Dump Truck A7 30 - 40 Tons For Construction
  • SINOTRUK HOWO Tipper Commercial Dump Truck A7 30 - 40 Tons For Construction
  • SINOTRUK HOWO Tipper Commercial Dump Truck A7 30 - 40 Tons For Construction
SINOTRUK HOWO Tipper Commercial Dump Truck A7 30 - 40 Tons For Construction
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: SINOTRUK HOWO A7
ได้รับการรับรอง: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257N3847N1
การชำระเงิน:
Minimum Order Quantity: 1 Unit
ราคา: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
ติดต่อ
รายละเอียดสินค้า
Product Name: Tipper Dump Truck Model: ZZ3257N3847N1
Drive type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.69, 336HP Cargo body: 5800*2300*1500mm
Loading capacity: 60-70tons
แสงสูง:

commercial dump truck

,

sinotruk howo dump truck

Description:

Tipper Dump Truck SINOTRUK HOWO A7 30-40tons for Mining industry ZZ3257N3847N1

This model can meet the requirements of severe environment like construction site and

mining area.which can fullfiled you of short distance transportation of mining rock and

soil as well as engineering construction.



This type product , with features of reliable structure , high loading capacity which can

load 30-60tons,strong power from 266HP to 420HP,reliable performance and wide

acceplication.





Specifications:




Tipper Dump Truck SINOTRUK HOWO A7 30-40tons for Mining industry ZZ3257N3847N1
Model ZZ3257N3847N1
Drive Type 8×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating

with air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1) Optimized cargo body structure,light weight,high rigidity,large loading capacity

2) Using the high strength steel,it has long service life

3) Optimized the sealing structure has the better sealing effect.

4) The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running

efficiency.

5) Multiple box structures and device selections

6) strong power and low fuel consumption

6) quick delivery time

7) fast and enough spare parts supply

8) speicalize maintainace service
