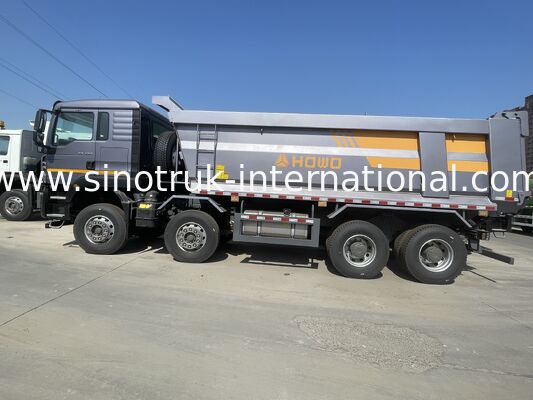

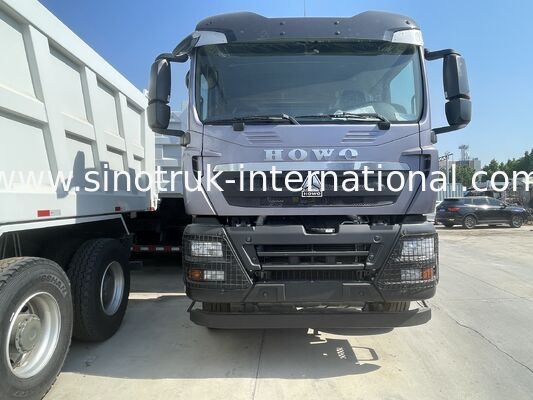

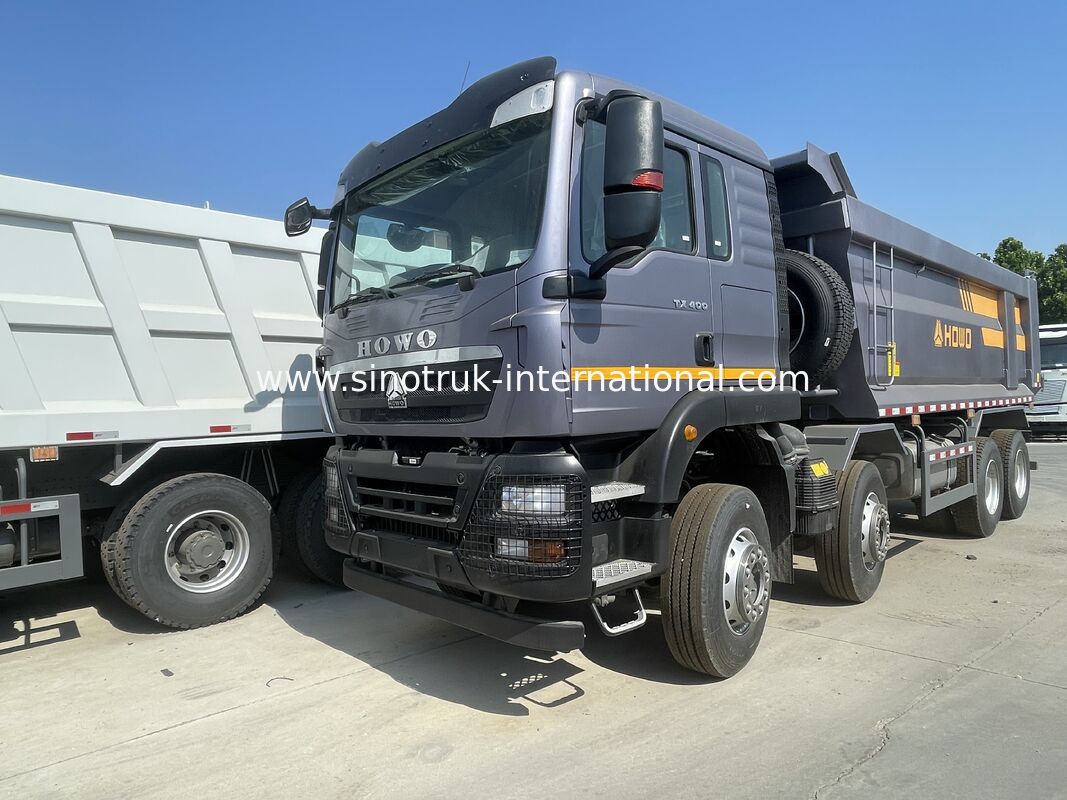

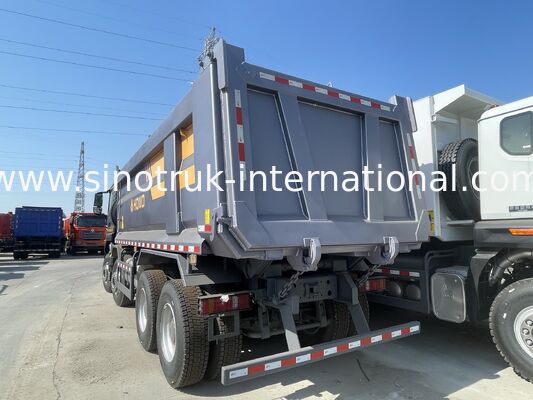

SINOTRUK TX Model 400HP 8X4 Tipper Dump Truck Construction Front Lifting Customer customization

SINOTRUK TX Model 400HP 8X4 Tipper Dump Truck Construction Front Lifting Customer customization

  • SINOTRUK TX Model 400HP 8X4 Tipper Dump Truck Construction  Front Lifting  Customer customization
  • SINOTRUK TX Model 400HP 8X4 Tipper Dump Truck Construction  Front Lifting  Customer customization
  • SINOTRUK TX Model 400HP 8X4 Tipper Dump Truck Construction  Front Lifting  Customer customization
  • SINOTRUK TX Model 400HP 8X4 Tipper Dump Truck Construction  Front Lifting  Customer customization
SINOTRUK TX Model 400HP 8X4 Tipper Dump Truck Construction  Front Lifting  Customer customization
รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: SINOTRUK HOWO
ได้รับการรับรอง: ISO/3C/BV/IFA/SGS
หมายเลขรุ่น: ZZ3317N386GB1
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1 ยูนิต
ราคา: USD48000-USD52000/UNIT)negotiation
รายละเอียดการบรรจุ: เปลือยหรือแว็กซ์ในเรือ Roro หรือเรือจำนวนมาก
เวลาการส่งมอบ: 25 วันทำการหลังจากได้รับการชำระเงินล่วงหน้า
เงื่อนไขการชำระเงิน: L/C,T/T,เวสเทิร์นยูเนี่ยน
สามารถในการผลิต: 3,000 หน่วยต่อเดือน
ติดต่อ
รายละเอียดสินค้า
ชื่อสินค้า: รถบรรทุก Dump Tipper แบบอย่าง: ZZ3317N386GB1
ประเภทไดรฟ์: LHD 8x4 มาตรฐานการปล่อยก๊าซเรือนกระจก: ยูโร 2
เครื่องยนต์: WP12S.400E201 (ยูโร II) ตู้เก็บสินค้า: 7800 × 2300 × 1500 (มม.), ด้านล่าง: 8 มม., ด้านข้าง: 6 มม.
กำลังโหลด: 40-50 ตัน
เน้น:

400HP 8X4 tipper dump truck

,

front lifting dump truck construction

,

customizable tipper dump truck

SINOTRUK TX Model 400HP 8X4 Tipper Dump Truck Construction  Front Lifting  Customer customization

Description:

The product has reliable structure and high bearing capacity

Load 30-60 tons, power 266HP-420HP, reliable performance, wide range of application.


This model can meet the requirements of severe environment like construction site and

mining area.which can fullfiled  you of short distance transportation of mining rock and

soil as well as engineering construction.



Specifications:



Tipper Dump Truck SINOTRUK  8X4 for Construction ZZ3317N386GB1

Model ZZ3317V386GB1
Drive Type 8X4
Engine

WP12S.400E201( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin TX-F(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 2×VGD95 ( 9.5 Tons)
Driving Axle HC16, 16Tons
Steering BOSCH hydraulic steering with power assistance.
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 10910×2496×3490(mm)
Cargo body 7800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 15300(Kg)
Gross weight 31000(Kg)
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:


Which is used in Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.


Competitive Advantage:


1) Various types of trucks to meet your needs
2) The world's top technology products are adopted for key components
3) Based on strong technical support and top technology, make the truck higher quality and more reliable

4) Optimized cargo structure, light weight, high rigidity, large load capacity

5) Adopt high strength steel, long service life

6) The optimized sealing structure has better sealing effect.

7) Intelligent hydraulic control system, avoid misoperation, with higher safety and operation efficiency.

8) A variety of box structure and equipment selection

9) Low fuel consumption
10) The engine is strong enough

11) Competitive price, cost-effective
12) Fast and efficient spare parts supply, bring you more convenience
13) Fast delivery time, we can accurately and quickly arrange production according to your needs

14) Professional import and export transaction procedures make customs clearance more efficient
