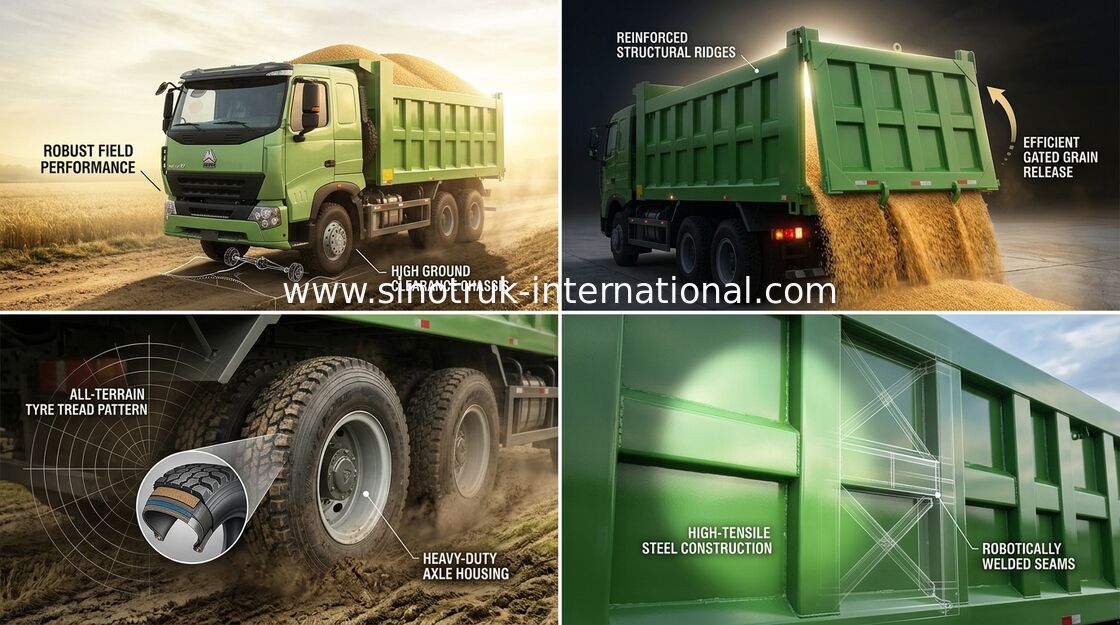

SINOTRUK HOWO A7 Tipper Dump Truck 25 - 30 Tons 10 Wheels RHD For Mining ZZ3257N3847N1

SINOTRUK HOWO A7 Tipper Dump Truck 25 - 30 Tons 10 Wheels RHD For Mining ZZ3257N3847N1

    • SINOTRUK HOWO A7 Tipper Dump Truck 25 - 30 Tons 10 Wheels RHD For Mining ZZ3257N3847N1
    • SINOTRUK HOWO A7 Tipper Dump Truck 25 - 30 Tons 10 Wheels RHD For Mining ZZ3257N3847N1
    • SINOTRUK HOWO A7 Tipper Dump Truck 25 - 30 Tons 10 Wheels RHD For Mining ZZ3257N3847N1
    • SINOTRUK HOWO A7 Tipper Dump Truck 25 - 30 Tons 10 Wheels RHD For Mining ZZ3257N3847N1
  • SINOTRUK HOWO A7 Tipper Dump Truck 25 - 30 Tons 10 Wheels RHD For Mining ZZ3257N3847N1

    รายละเอียดสินค้า:

    Place of Origin: China
    ชื่อแบรนด์: SINOTRUK HOWO A7
    ได้รับการรับรอง: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3257N3847N1

    การชำระเงิน:

    Minimum Order Quantity: 1 Unit
    ราคา: USD38000-USD42000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    ติดต่อ
    รายละเอียดสินค้า
    Product Name: Tipper Dump Truck Model: ZZ3257N3847N1
    Drive type: RHD 6X4 Emission Standard: Euro 2
    Engine: WD615.69, 336HP Cargo body: 5800*2300*1500mm
    Loading capacity: 30-40tons Cabin: A7-P
    แสงสูง:

    heavy dump truck

    ,

    commercial dump truck

    Dump Truck SINOTRUK HOWO A7 25 - 30tons 10 wheels RHD for Mining ZZ3257N3847N1



    Description:

    Dump Truck SINOTRUK HOWO A7 25 - 30tons 10 wheels RHD for Mining ZZ3257N3847N1

    HOWO-A7 is SINOTRUK Group after two years of research and development, a new generation of heavy truck series using the 130 items of the latest patented technology, represents the highest level of domestic heavy duty truck markets.



    From design concept to configuration, from the atmosphere to beautiful and practical and reliable, from the economy to the safety, comfortable, convenient, China's newly launched HOWO-A7 heavy truck reflects the product development strategy China's one step ahead. As the crystal China heavy truck "technology leading strategy", HOWO-A7 has not only become the pinnacle of domestic heavy truck also, will lead the China heavy truck industry to quickly advanced level in the world



    This model can meet the requirements of severe environment like construction site and

    mining area.which can fullfiled  you of short distance transportation of mining rock and

    soil as well as engineering construction.





    Specifications:





    Tipper Dump Truck SINOTRUK HOWO A7 25tons  for Mining ZZ3257N3847N1

    Model ZZ3257N3847N1
    Drive Type 8×4
    Engine

    WD615.47 , 371HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW19710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

    air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3800+1350(mm)
    Overall dimension 8575×2496×3450(mm)
    Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
    The curb weight 12300(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.



    Applications:



    working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



    Competitive Advantage:



    1) HOWO-A7 series heavy truck is China's new generation of heavy truck, with more than 130 new technology patent

    2)Optimized cargo body structure,light weight,high rigidity,large loading capacity

    3)Using the high strength steel,it has long service life

    4)Optimized the sealing structure has the better sealing effect.

    5)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running

    efficiency.

    6)Multiple box structures and device selections

    7)low fuel consumption
    8) strong enough engine
    9)with all kinds of truck model, which can fulfil your requirement
    10)the key parts adopt the world's top technology products
    11)based on strong technical support and top level technology make the trucks with high

    quality and more reliable
    12)competive price, cost-effective
    13)quick and efficient spare parts supply bring you more convenient
    14)fast delivery time, we can arange production according to your needs exactly and

    quickly

    15) professional import and export dealing precedure, make customs clearance more high efficiency
