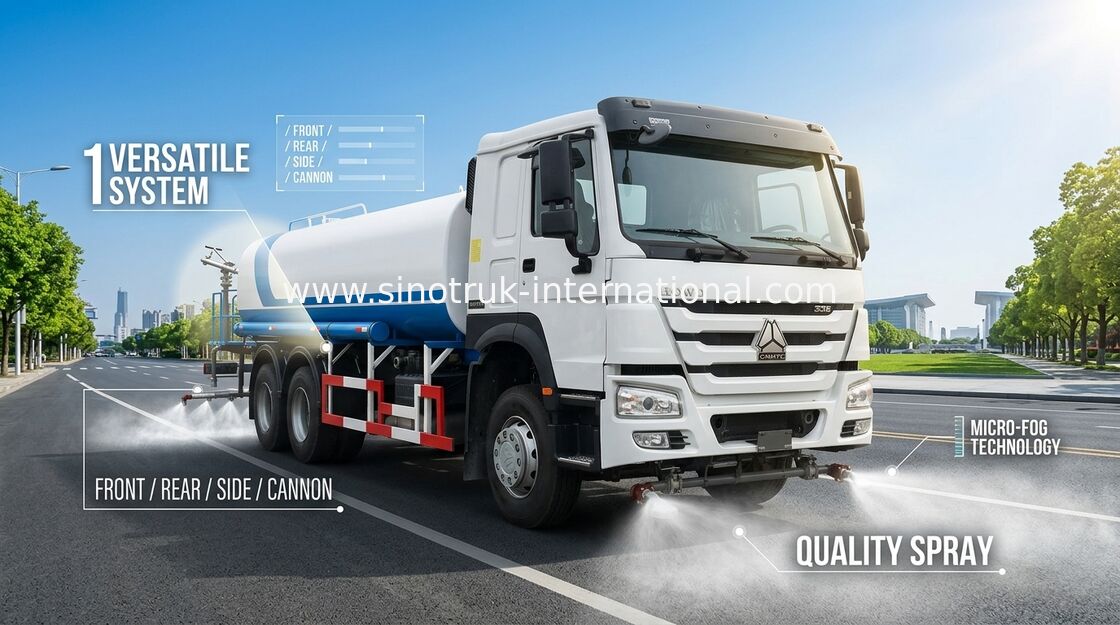

Water Sprinkling Tank Truck SINOTRUK HOWO LHD 6X4 18CBM For Pesticide Spraying

Water Sprinkling Tank Truck SINOTRUK HOWO LHD 6X4 18CBM For Pesticide Spraying

  • Water Sprinkling Tank Truck SINOTRUK HOWO LHD 6X4 18CBM For Pesticide Spraying
  • Water Sprinkling Tank Truck SINOTRUK HOWO LHD 6X4 18CBM For Pesticide Spraying
  • Water Sprinkling Tank Truck SINOTRUK HOWO LHD 6X4 18CBM For Pesticide Spraying
  • Water Sprinkling Tank Truck SINOTRUK HOWO LHD 6X4 18CBM For Pesticide Spraying
Water Sprinkling Tank Truck SINOTRUK HOWO LHD 6X4 18CBM For Pesticide Spraying
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: SINOTRUK HOWO
ได้รับการรับรอง: ISO/3C/BV/IFA/SGS
Model Number: ZZ1257M4341W
การชำระเงิน:
Minimum Order Quantity: 1 Unit
ราคา: USD41000-USD41500/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
ติดต่อ
รายละเอียดสินค้า
Product Name: Water Tank Truck Model: ZZ1257M4341W
Drive type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.87, 290HP Tank body capacity: 15-20CBM
แสงสูง:

construction water trucks

,

construction water truck

Water Sprinkling Tank Truck SINOTRUK HOWO LHD 6X4 18CBM For Pesticide Spraying



Description:



Water Sprinkling Tank Truck SINOTRUK HOWO LHD 6X4 18CBM For Pesticide Spraying

The Water tank truck is mainly used for construction of mines and other enterprises, road

flushing and dust covering in large-medium-scale cities, high and low-level spraying for

urban landscaping, pesticide spraying and guardrail washing as well as functions of

carrying and draining off water and emergency firefighting etc.



Tank external sandblasting, tank internal anti-corrosion treatment, outer surface of the senior

polyurethane topcoat, beautiful appearance. Optional mounted front and rear high jet,

with water diffusion function, a level 360 degree turn, also can be up and down 150

degree tilt. Optional medicine small flow pump, spraying configuration reel awakened

garden flowers and trees to kill the insects.



Our company production of Water Tank Truck have the character of high pressure, spraying

range wide, good flushing effect and so on. The flushing head universal regulation, meet

the arbitrary angle and the combination of the washing operation, the system can achieve

aerodynamic control and manual control of the two kinds of functions.



Working principle is truck engine driven gearbox, gearbox mounted power take-off drive

sprinkler pumps, sprinkler pump produces the main driving force, inside the tank of

liquid through the pipe to spray out. Self suction height: less than or equal to 7m,

sprinkler width: is equal to or more than 20m, maximum range: greater than or equal to

28m; adjusting the pillars, the range is more than or equal to 28m; also can be adjusted

into a mist, a range of equal to or more than 5m. Before the spray sprinkle, is arranged

in front of the duck shaped nozzle or round blunt mouth, mounted behind the open

sprinkler nozzle or shower nozzle of cylinder, at the back of the work platform, equipped

with water cannons.



Specification:



Sprinkling Truck SINOTRUK 18CBM for Landscape Engineering or Mining area

Chassis Model

ZZ1257M4341W

Drive Type

6×4

Engine

WD615.87, 290HP

Cabin

HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

Transmission

HW15710(10 forwards & 2 reverses)

Front Axle

HF9(1X9 Tons)

Driving Axle

HC16(1X16 Tons)

Clutch

hydraulically operating with air assistance

Rim/ Tire

11.00R20, Radial tyre

Wheel base

4400+1350(mm)

Capacity of tank body

15-20CBM

Spraying width of travel

14.8m

Spraying height

≧30m

Water sucking depth

≧4m

Overall dimension

9520×2496×3150mm

The curb weight

10180(Kg)

Gross weight

25000 kg

Max. speed

95km/h

Color

White, red, green, golden and so on.


Applications:



The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and

dust covering in large-medium-scale cities.



Competitive Advantage:



1) with all kinds of truck model, which can fulfill your requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make the trucks with high quality and

more reliable

4) competitive price, cost-effective
5) quick and efficient spare parts supply bring you more convenient

6) fast delivery time, we can arrange production according to your needs exactly and quickly

7) professional import and export dealing procedure, make customs clearance more high efficiency

8) High pressure, wide range of spraying good flushing effect

9) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation

10) Pneumatic control and manual control system can realize two functions

11) External sandblasting processing of tank, internal anti-corrosion treatment,        Outside surface adopts advanced polyurethane paint, beautiful appearance

12) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees

 flowers and plants
