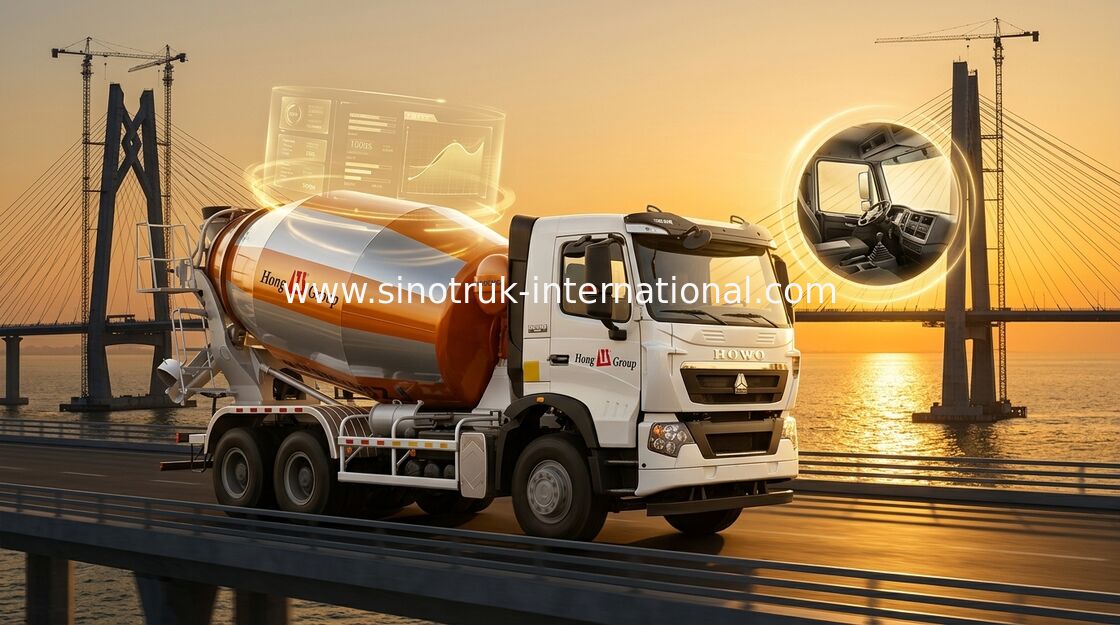

ISO Concrete Mixer Truck With Pump , Mobile Industrial Concrete Mixing Equipment

ISO Concrete Mixer Truck With Pump , Mobile Industrial Concrete Mixing Equipment

  • ISO Concrete Mixer Truck With Pump , Mobile Industrial Concrete Mixing Equipment
  • ISO Concrete Mixer Truck With Pump , Mobile Industrial Concrete Mixing Equipment
  • ISO Concrete Mixer Truck With Pump , Mobile Industrial Concrete Mixing Equipment
  • ISO Concrete Mixer Truck With Pump , Mobile Industrial Concrete Mixing Equipment
ISO Concrete Mixer Truck With Pump , Mobile Industrial Concrete Mixing Equipment
รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: SINOTRUK HOWO
ได้รับการรับรอง: ISO/3C/BV/IFA/SGS
Model Number: ZZ5257GJBM3841W
การชำระเงิน:
Minimum Order Quantity: 1 Unit
ราคา: USD47500-USD48000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
ติดต่อ
รายละเอียดสินค้า
ชื่อผลิตภัณฑ์: รถผสมคอนกรีต แบบอย่าง: ZZ5257GJBM3847W
ประเภทไดรฟ์: แอลเอชดี 6X4 มาตรฐานการปล่อยมลพิษ: ยูโร 2
เครื่องยนต์: WD615.87, 290HP ความจุตัวถัง: 10cbm
แสงสูง:

รถผสมคอนกรีตเคลื่อนที่

,

รถบรรทุกติดเครื่องผสมคอนกรีต

,

รถผสมคอนกรีต ISO

SINOTRUK HOWO Mobile Concrete Mixer Truck RHD 6X4 10CBM 290HP Engine



Description:



SINOTRUK HOWO Mobile Concrete Mixer Truck RHD 6X4 10CBM 290HP Engine

Our mixer truck using import hydraulic system, such as America Pump and motor, Italy brand reducer.

easy to repair and maintainance.



The HOWO Concrete Mixer Truck adopts HOWO chassis, equipped with HW76 single berth cabin

or HW70 cab, exclusively for export is equipped with European 2 or Electronic common

rail, Euro III and Euro IV SINOTRUK independent research and development of engine, standard

German imported ZF steering, HOWO 10 and 12 gear box,HF9 tons of front axle, HC16 or AC16

rear axle, carrying capacity great to meet the needs of customers.



The mixing tank body is made of high strength wear-resistant steel plate, cage type mold

are integrally formed to ensure that the flange, sections of the cylinder body and

rolling the coaxial degree and circle beat, to ensure smooth operation of the vehicle.

The tank body adopts the double helix blade, moderate density and taper before the

gateball symmetric stirring plate and tank mouth at the installation of blades and a

material guide vanes, resorted to materials to be more even faster.







Specification:



Concrete Mixer Truck SINOTRUK HOWO 10CBM ZZ5257GJBM3841W Italy hydraulic system

Model ZZ5257GJBM3847W
Drive Type 6×4
Engine

WD615.87 , 290HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8098 hydraulic steering with power assistance.
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3825+1350(mm)
Overall dimension 8604×2496×3950(mm)
Tank body Capacity

10CBM

The curb weight 12800(Kg)
Gross weight 25000 kg
Max. speed 102km/h
Color White, red, green, golden and so on.




Applications:



t’s suitable for agitating and transport concrete, for construction site, road repairing and some other

 infrastructure construction business.



Competitive Advantage:



1)competive price, cost-effective
2)quick and efficient spare parts supply bring you more convenient
3)fast delivery time, we can arange production according to your needs exactly and

quickly

4) professional import and export dealing precedure, make customs clearance more high efficiency

5)The leading product technology, complete function, excellent performance, reliable quality, easy to

   operate.

6)Optimization of body structure, special mold production, beautiful appearance, concrete mixing,

    discharge uniformity, low rate of residual.

7)Imported hydraulic pump, hydraulic motor and speed reducer.

8)Uses the high strength steel plate, long service life.

9)Optimization of the whole structure, low center of gravity, high running efficiency.

10)Product range is wide, the tank capacity of 6 to 18 cubic meters.

11)Choose a variety of auxiliary device.

12)Match all concrete mixer truck chassis.

13)based on strong technical support and top level technology make the trucks with high

quality and more reliable
